Shopping Malls & Hotels

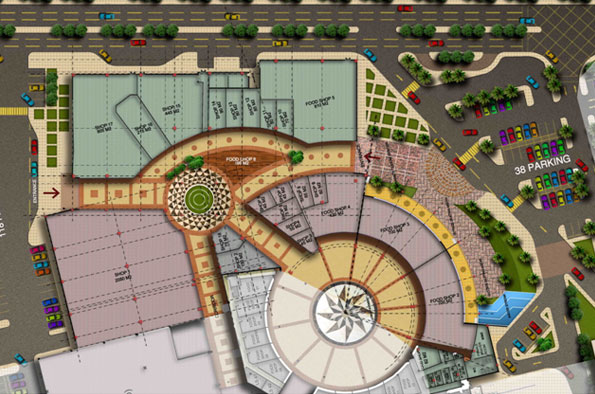

Dana Mall

Yanbo - KSA

Client : Al Aman construction

Description:

Shopping Mall in Yanbo – KSA , Pillars Egypt was involved in the project in 2012 and provided different structural engineering services including , cost reduction studies , re-design and shop drawings (extension area was 20,000 m2 ) and also provided structural design for the food court extension in 2014 ( extension area is 12,000 m2)

The structural elements included in the project were concrete , post tension and steel .

Al Jifry Hotel

Makkah - Saudi Arabia
Client : Al Jifry Group

Description:

30 floors hotel in Makkah 5000 square meters average floor area, concrete structure , raft foundation , flat slab floors. The scope was to review , restudy for cost reduction and coordinate with architectural requirements

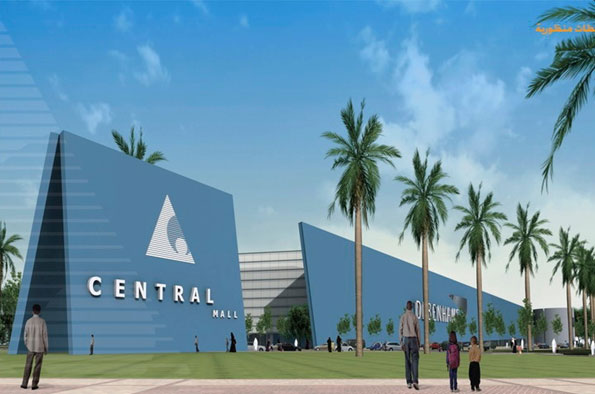

CENTRAL PARK MALL

JEDDAH – SAUDI ARABIA

Architect : Hossam Al Abdul Kareem (HAK)

Description:

300,000 square meters built up area shopping mall in old airport are in the heart of Jeddah , the land mark building is three floors pre-cast columns and pre-cast pre-stressed beams and slabs.

The building has a 26 meters height inclined free standing pair of walls made of R.C.

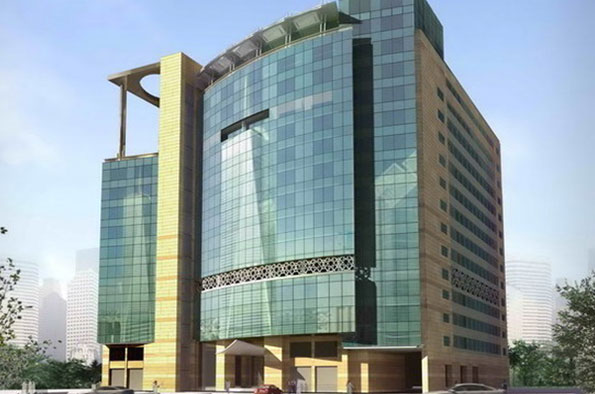

Al Ghamas Hotel

Makah – SAUDI ARABIA

Architect : SPINE architects and engineers

Description:

Unique architectural  layout with intersecting buildings with complicated roof layout.
2500 square meter foot print with 2 basement floors , ground , mezzanine , 3 service floors and 9 typical floors with a total 52 meters height above ground.

The building is reinforced concrete flat slab spans up to 9.0 meters supported on columns and shear walls.

Red Sea Mall

Jeddah – SAUDI ARABIA

Client: e.construct

Description:

Shopping mall in Jeddah with 200,000 square meters duilt up area pre=cast beams and slabs

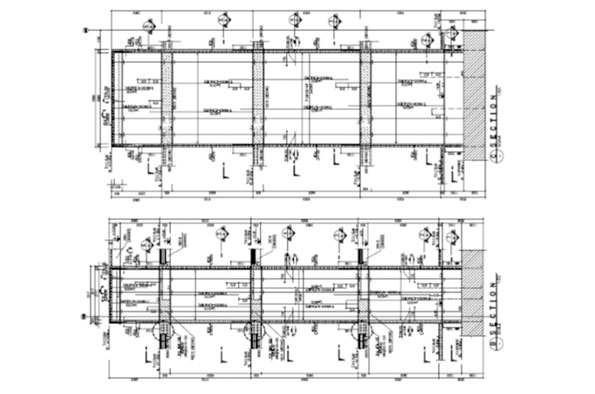

Scope: Shop drawings for all cast in place elements including, foundations, columns, retaining walls, slabs and stairs.
Duration: 18 months
